TS-EDDY

TAILSIT
  • Simulation of Eddy Current problems
  • Scalable FEM-BEM-coupling
  • Fast Multipole Method (FMM) & advanced preconditioner
  • No modelling of the surrounding air required
  • Analysis of moving parts without re­meshing

Examples

Eddy Current Brake

  • Coupling of mechanic and electro­magnetic forces
  • During simulation, no remeshing required
  • FEM-BEM coupling in time-domain
Lenz's Experiment

High resolution video

COMPUMAG TEAM Workshop Problem 3

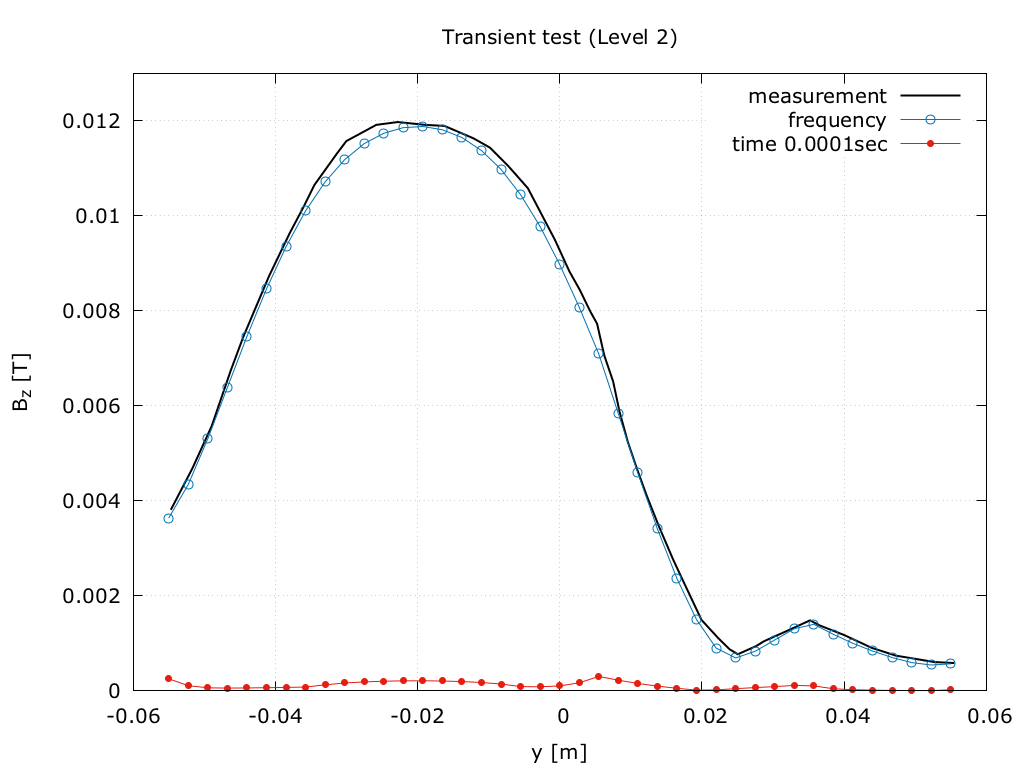

COMPUMAG TEAM workshop problem 3 - comparison with measurements
TS-EDDY - COMPUMAG TEAM workshop problem 3

High resolution video

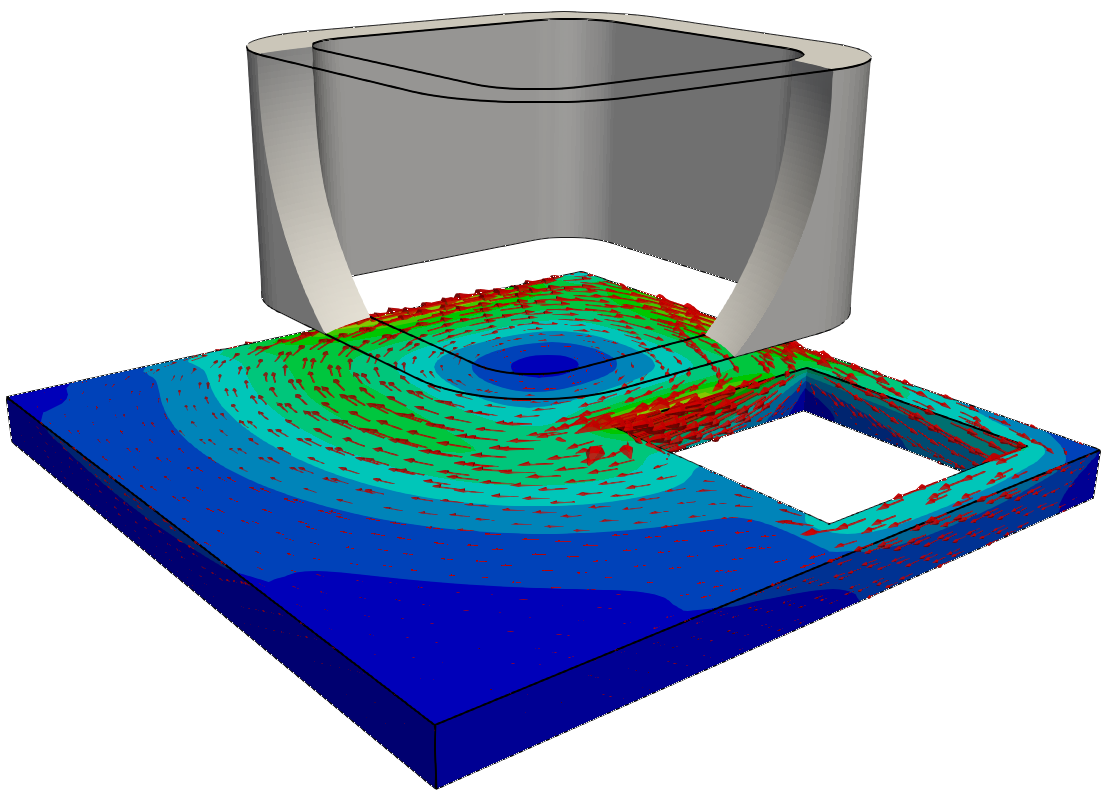

COMPUMAG TEAM Workshop Problem 7

COMPUMAG TEAM workshop problem 7 - comparison with measurements
TS-EDDY - COMPUMAG TEAM workshop problem 7

Animation | Report

COMPUMAG TEAM Workshop Problem 13

COMPUMAG TEAM workshop problem 13 - comparison with measurements
TS-EDDY - COMPUMAG TEAM workshop problem 13

Report

COMPUMAG TEAM Workshop Problem 24

COMPUMAG TEAM workshop problem 24 - comparison with measurements
TS-EDDY - TEAM problem 24

Animation | Report
